| Brand Name : | CWT |
| Model Number : | CWT5005 |
| Certification : | CE ROHS |
| Price : | $50-$90/set |
| Payment Terms : | T/T, western union, paypal |
| Supply Ability : | 5000 units per month |
| Delivery Time : | within 1-3 working days after payment |
CWT5005 CELLULAR RTU
With 2DI & 2DO, remote monitor industry systemvia sms
GSM 3G 4G controller, sms remote control switch relay, 3G 4G sms alarm module, 3G 4G gsm io module
CWT5005 GSM 3G 4G controller, sms remote control switch relay, 3G 4G sms alarm module, 3G 4G gsm io module
Support 3G/4G version (Skype: lisali1220 WhatsApp: 0086
13652426178)
 |  |
£ interface feature and parameters
£ communication feature
£ Technical characteristic
l Adopted highly integrated industrial 32-bit ARM MCU
l Inside cellular module, support sms communication
l Reliable performance with built-in double watchdog, 24×7 operation
l Can set parameters for every channel to signal collection, alarm
l Multiple signal filtering mechanisms to ensure immediacy and reliability of the system
l Network-reconnect and retransmission to ensure sms and data accurately transmit
l Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
l Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
l Event-based linkage programming, e.g. alarm linkage output
l Inside temperature optional, can set high or low to alarm
l Optional inside battery that life is 8-20 hours, cellular module sleep when power lost, support power lost alarm and recover sms
£ Device Specifications

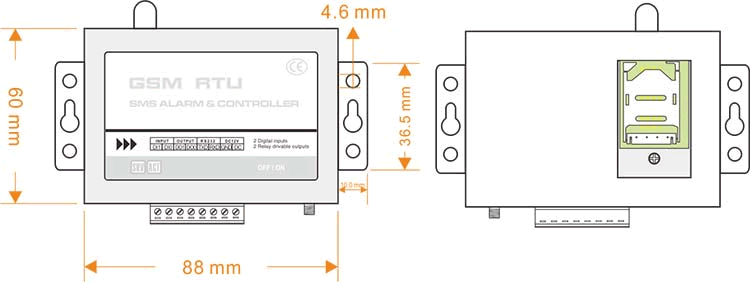

£ Size diagram
£ Package list
RTU×1, antenna×1,Standard adapter: DC 12V/1.5A×1,serial cable×1
£ Free Configure Software
l No programming! set parameter by visual interface
l Can save config file, one click finish config
l Over 100 parameters can be set, flexible! Meeting various industrial requirements
£ CWT5000 series cellular RTU list
| model | IO interface | communication interface | Modbus | SMS | TCP/IP Over cellular | More detail |
| CWT5005A | 2DI+2DO | 1 RS232 | × | √ | × | view» |
| CWT5005B | 2DI+1DO(relay) | 1 RS232 | × | √ | × | view» |
| CWT5010 | 4DI+4DO | 1 RS232 | × | √ | × | view» |
| CWT5011 | 8DI+8DO+4AI | 1 RS232 | × | √ | × | view» |
| CWT5110 | 4DI+4DO | 1 RS232 | × | √ | √ | view» |
| CWT5111 | 8DI+8DO+4AI | 1 RS232 | × | √ | √ | view» |
| CWT5015 | 2DI+3DO(relay)+1AI | 1 RS232 | × | √ | √ | view» |
| CWT5016 | 4DI+4DO+4TI+4AI | 1 RS232 | × | √ | √ | view» |
| CWT5002 | 4DI+4DO | 1 RS232(RS485 optional) | √ | √ | √ | view» |
| CWT5018 | 4DI+2DO(relay)+8AI | 1 RS232+1RS485+1Ethernet | √ | √ | √ | view» |
| Cellular module default is 2G module, option: 3G/4G module | ||||||
£ Free CWT Cloud

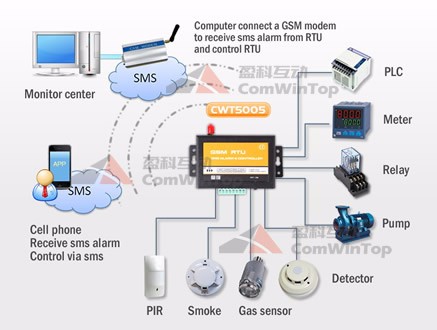

£ Application case
£ Application
£Certificates
|
|
