| Brand Name : | CWT |
| Model Number : | CWT5005 |
| Certification : | CE ROHS |
| Price : | $50-$90/set |
| Payment Terms : | T/T, western union, paypal |
| Supply Ability : | 5000 units per month |
| Delivery Time : | within 1-3 working days after payment |
CWT5005 GSM Remote Controller with 2 Digital Input and 2 Digital
Output
Support 3G/4G version (Skype: lisali1220 WhatsApp: 0086
13652426178)

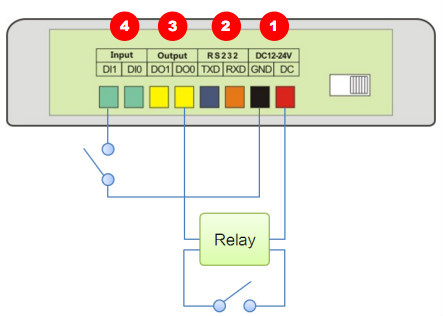

CWT5005A has 2 digital input and 2 digital outputs
CWT5005B has 2 digital input and 1 relay output
Features
·Configurable for alarm and recover sms
·Automatically report the status of itself on schedule
·Support remote setting via sms commands
·Preset 10 phone numbers(can be distributed authority)
·Remote add/edit/delete phone group
·Automatically update internal clock via sms
·Time stamped in alarm or recover messages
·Support ring call when alarm
·Temperature sensor (optional)
·Internal battery (optional)
·Easy used GUI configure software
·Adopted highly integrated industrial CPU
·Reliable performance with built-in double watchdog
·Low maintenance, 24×7 operation
digital inputs feature
·NO or NC type can be preset
·Configurable for alarm and recover sms
·Configurable for alarm ensure time
·Configurable for alarm delay time
·Configurable for service number’s authority of receive inputs alarm
·Remote query inputs status
relay drivable outputs
·Multiple output type can be preset
·Remote On/Off/Pulse outputs
·Configurable for pulse time
·Remote query outputs status
·Outputs can be activated by alarm or call
·Outputs can be activated on schedule
Specifications
| Parameter | |
| DC Power supply | 12-24V DC (Standard adapter: DC 12V/1.5A) |
| Power consumption | 12V input Max. 150mA/Average 50mA |
| Frequency range | Quad-frequency 900/1800/850/1900HMz |
| SIM Card | Supporting 3V SIM Card |
| Antenna | 50 Ω SMA Antenna interface |
| Serial | RS232 |
| Temperature range | -30°C ~ +70 °C |
| Humidity range | Relative humidity 95% |
| Digital Input | 4 digital inputs(Dry contact) |
| output | 4 drivable relay outputs(open-collector outputs) |
| Output drive voltage | Equal to input DC voltage |
| Output drive power | Drive voltage ≤35V, drive current ≤500mA |
| Exterior dimension | 96×63×25mm |
| Weight | 256 g |

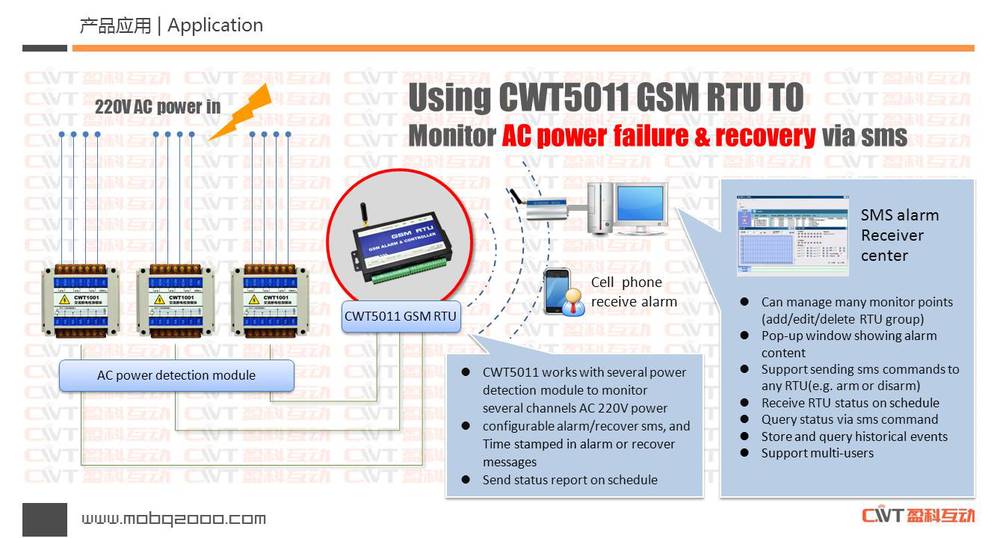

CWT RTUs Applications:
|
