9 Years
| Ask Lasest Price | |
| Brand Name : | CWT |
| Model Number : | CWT5010 |
| Certification : | CE,RoHS |
| Price : | $50-150/unit |
| Payment Terms : | T/T, western union, paypal |
| Supply Ability : | 5000units/month |
| Delivery Time : | within 1-3 working days after payment |
Support 3G/4G version (Skype: lisali1220 WhatsApp: 0086 13652426178)

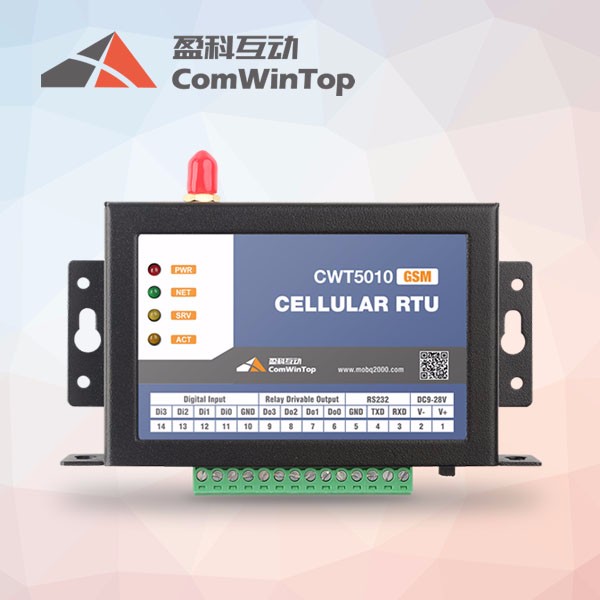

CWT5010 CELLULAR RTU
With 4DI & 4DO, remote monitor industry system via sms
GSM RTU,GSM 3G sms gateway,gsm 3G untit,3G controller,3G alarm module,GSM 3G remote terminal unit
 |  |
£ interface feature and parameters
£ communication feature
£ Technical characteristic
l Adopted highly integrated industrial 32-bit ARM MCU
l Inside cellular module, support sms communication
l Reliable performance with built-in double watchdog, 24×7 operation
l Can set parameters for every channel to signal collection, alarm
l Multiple signal filtering mechanisms to ensure immediacy and reliability of the system
l Network-reconnect and retransmission to ensure sms and data accurately transmit
l Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
l Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
l Event-based linkage programming, e.g. alarm linkage output
l Inside temperature optional, can set high or low to alarm
l Optional inside battery that life is 8-20 hours, cellular module sleep when power lost, support power lost alarm and recover sms
£ Device Specifications
£ Size diagram
£ Package list
RTU×1, antenna×1,Standard adapter: DC 12V/1.5A×1,serial cable×1
£ Free Configure Software
l No programming! set parameter by visual interface
l Can save config file, one click finish config
l Over 100 parameters can be set, flexible! Meeting various industrial requirements
£ CWT5000 series cellular RTU list
| model | IO interface | communication interface | Modbus | SMS | TCP/IP Over cellular | More detail |
| CWT5005A | 2DI+2DO | 1 RS232 | × | √ | × | view» |
| CWT5005B | 2DI+1DO(relay) | 1 RS232 | × | √ | × | view» |
| CWT5010 | 4DI+4DO | 1 RS232 | × | √ | × | view» |
| CWT5011 | 8DI+8DO+4AI | 1 RS232 | × | √ | × | view» |
| CWT5110 | 4DI+4DO | 1 RS232 | × | √ | √ | view» |
| CWT5111 | 8DI+8DO+4AI | 1 RS232 | × | √ | √ | view» |
| CWT5015 | 2DI+3DO(relay)+1AI | 1 RS232 | × | √ | √ | view» |
| CWT5016 | 4DI+4DO+4TI+4AI | 1 RS232 | × | √ | √ | view» |
| CWT5002 | 4DI+4DO | 1 RS232(RS485 optional) | √ | √ | √ | view» |
| CWT5018 | 4DI+2DO(relay)+8AI | 1 RS232+1RS485+1Ethernet | √ | √ | √ | view» |
| Cellular module default is 2G module, option: 3G/4G module | ||||||
£ Free CWT Cloud
£ Application case
£ Application
£ Certificates
|
|
